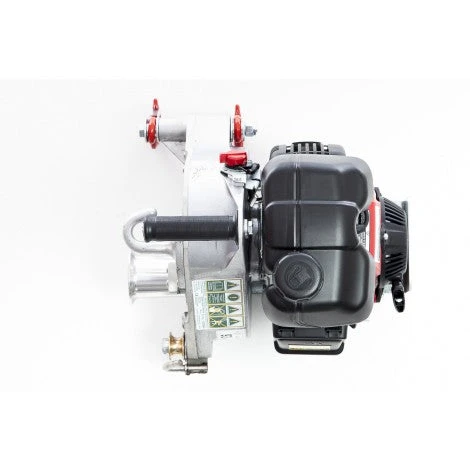

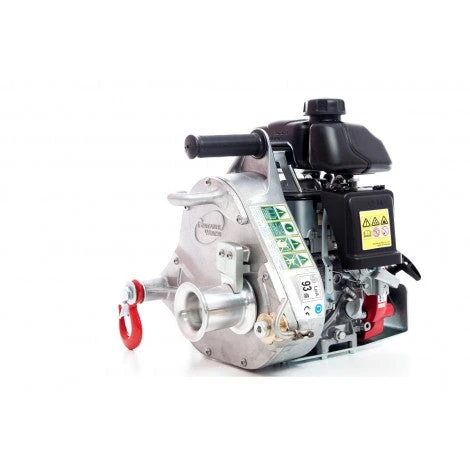

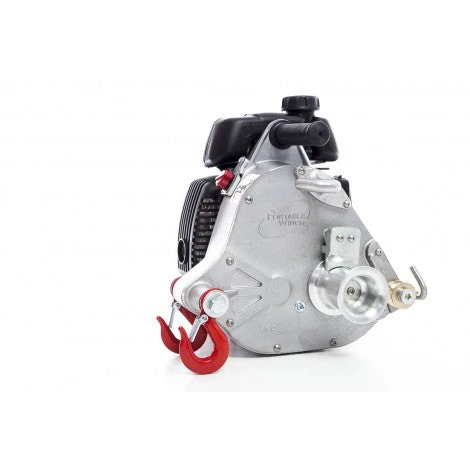

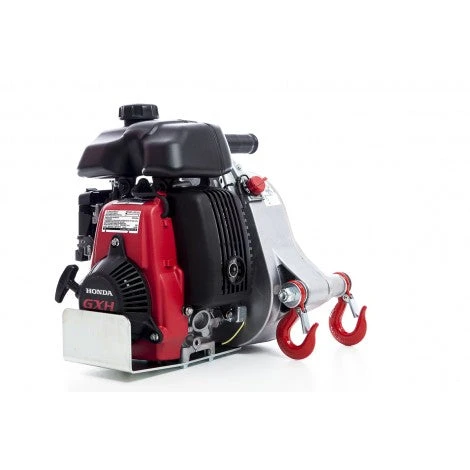

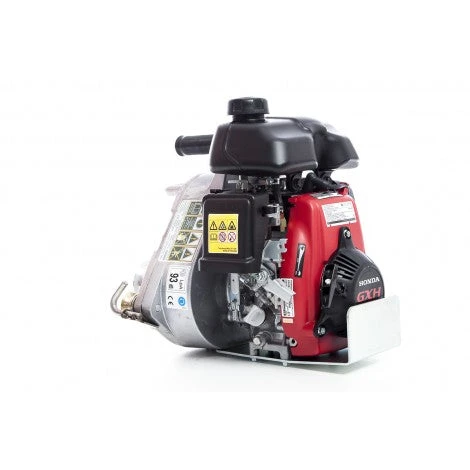

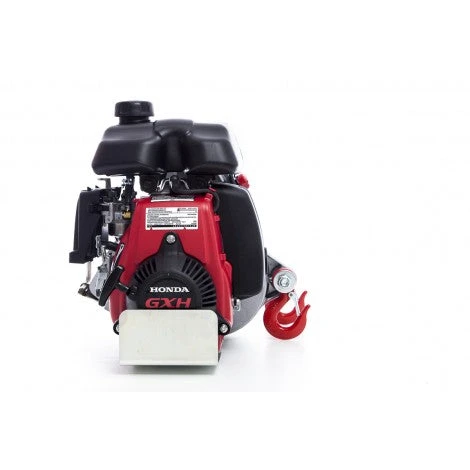

GAS-POWERED PULLING WINCH

#GXH50 PCW5000

Maximum Pulling Force With Standard Drum : 2,200 lbs.
Double Line Pulling Force With Standard Drum : 4,400 lbs.
Maximum Pulling Force With Optional Drum : 1,600 lbs.
Double Line Pulling Force With Optional Drum: 3,200 lbs.



Speed-

57 mm drum : 40 ft. /min

85 mm drum : 60 ft. /min

Rope –

Length : Unlimited
Pulling : Double braided with low stretch (not included)
Minimum Diameter  : 3/8″
Maximum Diameter  : 1/2″
Ideal diameter  : 1/2″

Engine/Motor & Gear Box-

Engine/Motor : Honda 4-stroke GXH50 cc
Clutch : N/A – Direct Drive
Gear Box and Gears : Aluminium alloy gear box. Heat treated 3-stage spur gears.
Shafts mounted on ball bearings. Oil bath lubrication.
Gear Ratio : 110:1
Brake : Anti-reversing roller clutch bearing
Work Cycle : Continuous

–

–Included : Polyester sling 60 mm x 2 m (PCA-1260)

Part # POR PCW5000
