Portable Winch Rigging Supplies Gas Powered Portable Pulling Winch Honda GX35 – Hunter Kit PCW3000-HK

GAS-POWERED PULLING WINCH-HUNTER KIT

#GX35PCW3000-HK

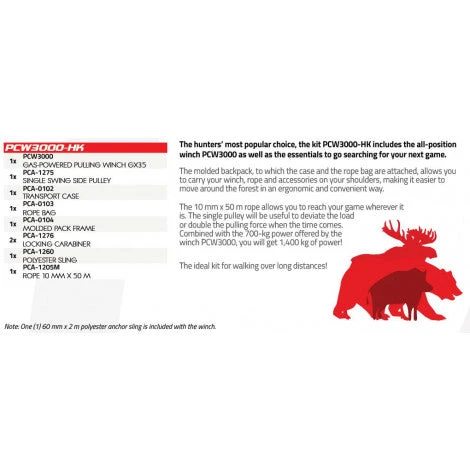

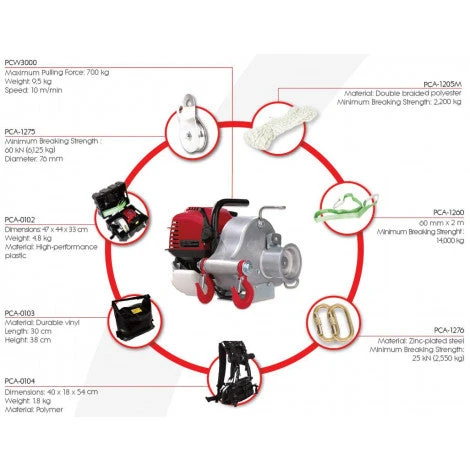

This kit includes the following items:

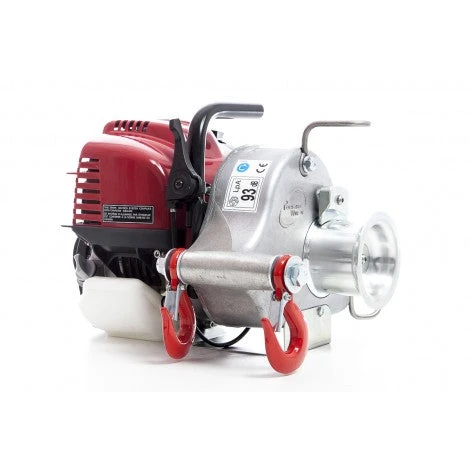

1  #PCW3000 Gas Powered pulling winch

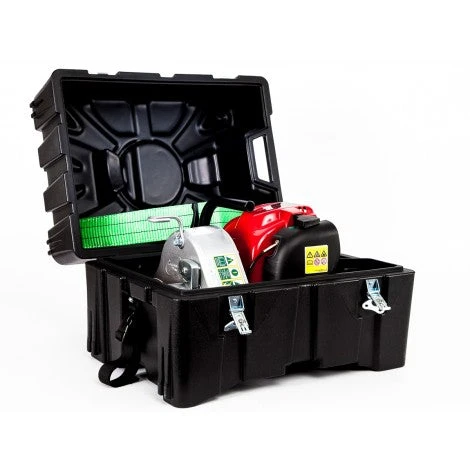

1 #PCA-0102 Transport case

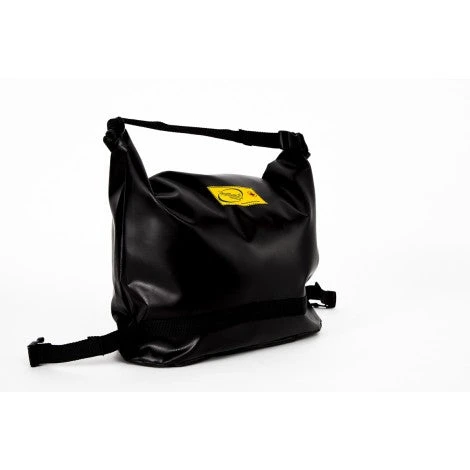

1 #PCA-0103 Vinyl rope bag

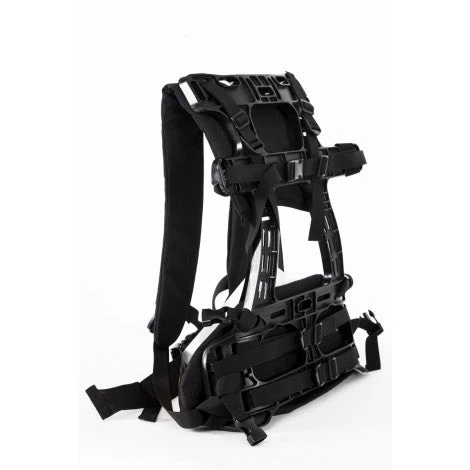

1 #PCA-0104 Molded pack frame for transport case

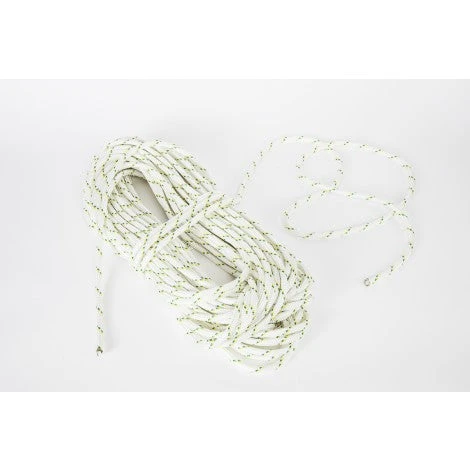

1 #PCA-1205M Double Braided Polyester rope 10mm x 50m

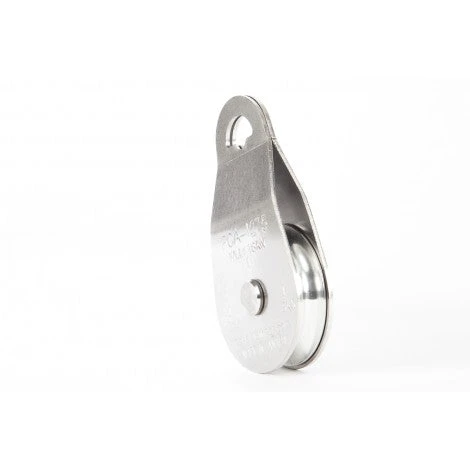

1 #PCA-1275 Durable Pulley

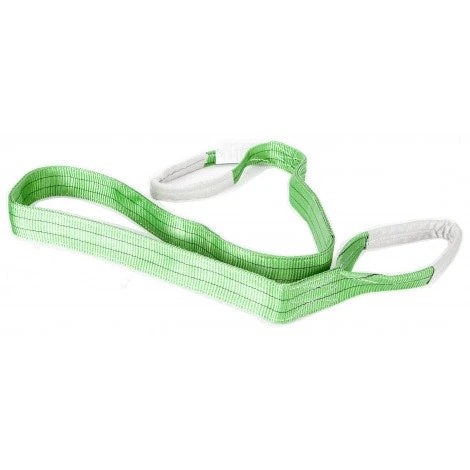

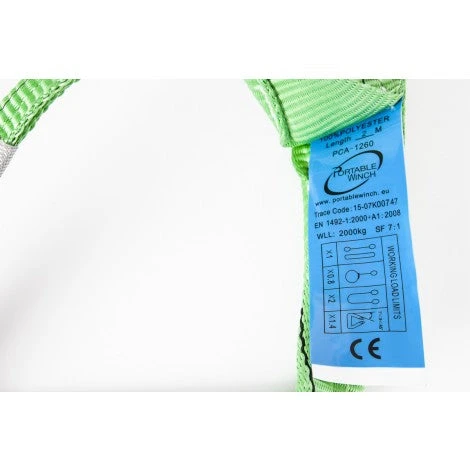

1 #PCA-1260 Multi-purpose sling (2′ – 3/8″ x 6′ – 3/16″)

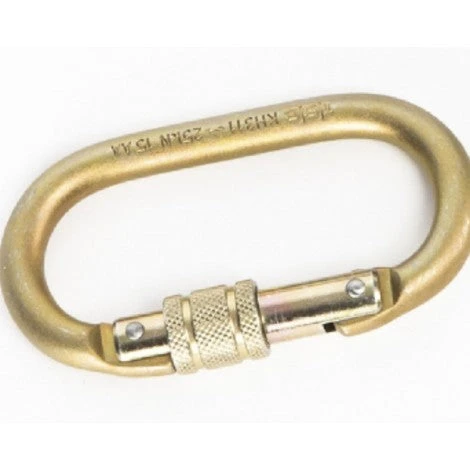

2 #PCA-1276 Muti-purpose aluminium carabiner with srew gate lock



#PCW300 Gas Powered pulling winch Specifications:

Maximum Pulling Force With Standard Drum : 1,600 lbs.

Double Line Pulling Force With Standard Drum : 3,200 lbs.

Speed-

76 mm drum : 33 ft. /min

Rope –

Length : Unlimited
Pulling : Double braided with low stretch
Minimum Diameter  : 3/8″
Maximum Diameter  : 1/2″
Ideal diameter  : 3/8″

Engine/Motor & Gear Box-

Engine/Motor : Honda 4-stroke GX35 cc – all positions
Clutch : N/A – Direct Drive
Gear Box and Gears : Aluminium alloy gear box. Heat treated 3-stage helical spur gears.
Shafts mounted on ball bearings. Oil bath lubrication.
Gear Ratio : 200:1
Brake : Anti-reversing roller clutch bearing
Work Cycle : Continuous

–

–

Part # POR PCW3000-HK
